Driveline Performance Engine Cases, 7-10 mill, DM Cases, Trenched *NEW*

Banshee 1987-2006

These are new die cast aluminum Banshee cases that Driveline Performance (DP) has been developing for the last several years. DP has made a lot of changes to the OEM design while still retaining the stock look. DP added extra material in all the places the stock cases were lacking for today's larger stroke cranks and aftermarket cylinders.

You can trench these cases up to a 14 mm stroke without any epoxy or welding. The top case can be bored and machined to fit a DM cylinder and not break through on the sides of the transfers.

This set of engine cases are pre-trenched and BORED to fit a 78 mm DM CYLINDER. DP also CNCs the transfers to match the DM cylinder.

They will fit a 7 mill or a 10 mill crankshaft.

The sealing area is much larger on these cases because of the extra material we have added compared to stock cases that have been trenched for a 7 mill or 10 mill crank.

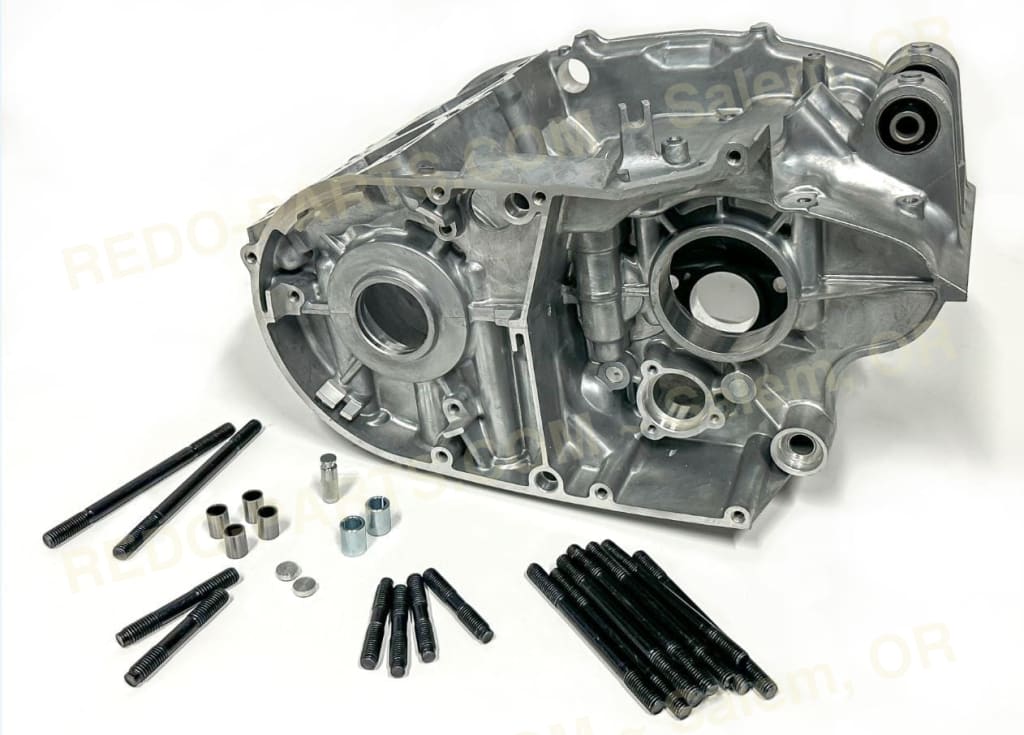

The following items are included with every case set:

• Top case cylinder studs: Qty = 10 (two extra longer studs are added for cub style cylinders)
• Lower case studs: Qty = 8
• Front and rear mounting dampeners: Qty = 4
• Case/side cover locating dowels: Qty = 3
• Cylinder locating dowels: Qty = 4
• Shift shaft bushing: Qty = 1
• Shift fork shaft plugs: Qty = 2
• Kick starter assembly mounting post: Qty = 1
• Actuator lever bearing Qty = 1
