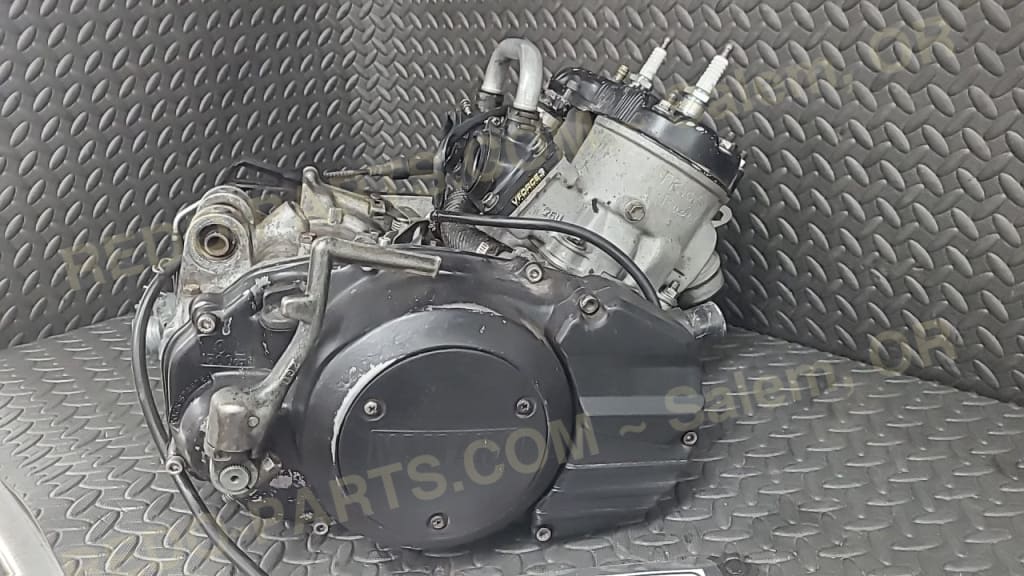

Shop Banshee 369 Engine Rebuild

Shop Banshee 369 Engine Rebuild

Re-Do Banshee rebuilt this Banshee engine to 369 cc and posted it on our website for sale. With proper care and gas to oil mixture, this should be a strong running engine for years to come.

Our videos follow the engine build as it progresses. One video in the playlist shows why it's important to do a leak down test and what to do when it fails. Other videos show the engine passing its leak down test and heat cycling the engine on the test stand.

For more info on this engine build:

  • Watch the video. 👀
  • Scroll down ⬇️ for the link to watch the build's whole playlist on Youtube.
  • Keep scrolling down ⬇️ to see the build specs below the video.



Q- Have questions about selecting parts or getting help with your build?
A- You can call 📞📱 or message us at 541-419-6054.

We are flexible and will work with you. We can:

  • Help you select the parts for your DIY build and ship them to you. - OR -
  • Build your engine and ship it to you to install. - OR -
  • Complete the whole build for you and install in your Banshee.

Engine Specs

  • BUILD NAME:  Shop 369 Engine Rebuild - Was for Sale
  • EXPECTED RIDING CONDITIONS:  TBD by Customer
    • Recreational dirt trail riding
    • Recreational dune & trail riding
    • High performance dune riding
  • DISPLACEMENT:  (refer to our Banshee Engine Displacement blog article to calculate, then delete this note)
  • ENGINE CASES (CASE HALVES):  Stock Cases
  • CYLINDERS:  Stock - Bored to 66 mm
  • PORTED:  Aggressive Dune Port - Between dune & drag port.
  • PISTONS: Wiseco 66 mm - 513 Pro-Lite
  • CYLINDER HEAD:  Stock
  • DOMES:  n/a - Stock cylinder head
  • CRANKSHAFT: Stock Crank 54 mm, trued and welded
  • COMPRESSION:  190 psi (determines fuel recommendation)
  • TRANSMISSION:  Stock
  • REEDS / CAGE:  Stock - or - Moto Tassinari VForce4 Reed Valve System
  • CARBS:  Stock Mikuni with "MIC"
  • CARB JETTING:  320 main, 27.5 pilot. (varies based upon engine build and elevation)
  • NEEDLES:  5N7U needles for Stock Mikuni.
  • NEEDLE CLIP SETTING:  Center Groove on Slide Needle
  • AIR SCREW ADJUSTMENT:  3/4-1 turn out for stock
  • FUEL RECOMMENDATION: Race Gas (110 Octane minimum to 116 Octane) for 150-200 psi
  • WATER PUMP IMPELLER:  Stock - or - Billet Aluminum
  • CLUTCH: Stock Clutch
  • CLUTCH BASKET: Stock
  • CLUTCH SPRINGS:  3 Stock & 3 Heavy Duty Springs
  • CLUTCH LEVER:  TBD by Customer
  • EXHAUST:  TBD by Customer
  • STATOR:  Stock
  • TIMING: Stock (n/a)



Back to blog

References:

  • We calculate engine displacement based on the bore in the engine's cylinders and the stroke length of the crankshaft. Click here for more explanation in our Banshee Engine Displacement blog article.
  • Click here for information about Banshee engine break-in procedures. This includes our recommendations for Fuel to Oil Ratios and Selecting the Correct Fuel.

About the Authors:

This project article was written by Janel with plenty of help from Virgil. Virgil is the Banshee mechanic, and I am the website mechanic. I do own and ride a Banshee, which helps.

The Re-Do crew hopes sharing our project info and specs may help some with their own projects, or that you find it interesting. Writing and editing these articles helps me (Janel) make better sense of the parts, fitment, and what goes with what. I want our technical info to be accurate and helpful.

Please do let us know if you like our project articles, or if you think I need to correct something. You can send an email to info@redo-parts.com - and your comments will be passed along to me.

Thanks ~Janel 😉👌
